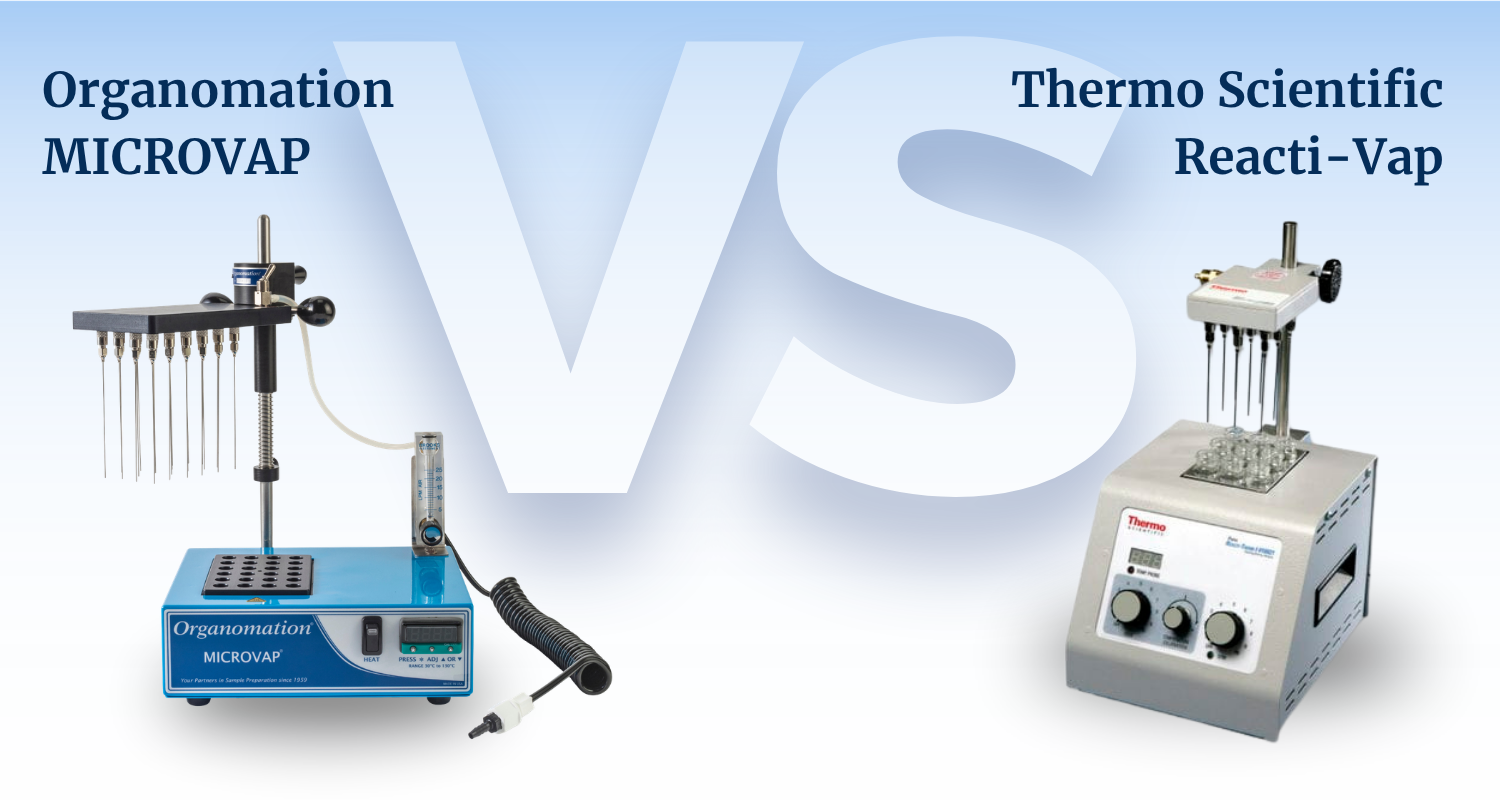

Organomation MICROVAP vs. Thermo Scientific Reacti-Vap: Which Nitrogen Evaporator Is Right for Your Lab in 2026?

September 21, 2026 / David Oliva

Quick answer: The Organomation MICROVAP and the Thermo Scientific Reacti-Vap both use nitrogen blowdown to evaporate solvent from multiple samples at once, but they serve different budgets and workflows. The MICROVAP costs $1,000–$3,000, runs on a standard 20–30 psi gas line, and carries a two-year warranty — making it the better fit for routine sample concentration. The Reacti-Vap costs $4,000–$7,000, reaches a higher 200°C maximum temperature, offers optional stirring, and ships with a 90-day warranty — making it better suited to specialized, high-temperature protocols.

Download the full comparison PDF here!

What Is the Main Difference Between the MICROVAP and the Reacti-Vap?

The main difference is cost versus temperature ceiling. The MICROVAP is priced roughly 60–70% lower than the Reacti-Vap but tops out at 130°C, while the Reacti-Vap costs more and reaches 200°C, with individual Reacti-Vap evaporator modules listed directly on Thermo Fisher's site before the Reacti-Therm heating module is added. For labs running standard solvents like methanol, acetonitrile, or hexane, that extra 70°C of headroom rarely matters in practice.

How Do the Systems Work?

Both instruments rely on the same underlying principle: a controlled stream of inert nitrogen sweeps across each sample's surface, lowering vapor pressure and driving off solvent faster than evaporation at rest, typically combined with gentle heat to protect thermally sensitive analytes, as explained in The Lab Depot's guide to nitrogen blowdown for PFAS sample prep. The Thermo Scientific Reacti-Vap uses a precision-machined gas manifold with a tilting evaporation head that delivers pressurized nitrogen simultaneously or individually to samples seated in a Reacti-Therm heating block, with PTFE-coated needles available for strong-acid work. The Organomation MICROVAP pairs nitrogen blowdown with a precision-machined aluminum heat block for uniform, direct heat transfer to sample tubes, and offers PTFE-coated components rated for both corrosive and explosive solvents.

Which System Costs Less to Own?

The MICROVAP costs less both to purchase and to insure against early failure. Its $1,000–$3,000 price sits well below the Reacti-Vap's $4,000–$7,000 range, and its two-year warranty outlasts the Reacti-Vap's 90-day coverage by nearly eight times. For labs budgeting total cost of ownership rather than sticker price alone, that warranty gap can matter as much as the upfront savings, especially since replacement needles and manifold parts see frequent turnover in high-throughput labs.

Which System Handles More Samples per Run?

The Reacti-Vap handles more samples per run at its largest configuration. It's available in 9- or 27-port models built for single- or triple-block Reacti-Therm modules, while the MICROVAP tops out at 24 positions across its 6-, 15-, and 24-tube configurations. Labs that consistently batch larger sample sets may lean toward the Reacti-Vap's 27-port option; labs with smaller or variable batch sizes have more granular MICROVAP configurations to match throughput exactly.

Which System Is Easier to Install?

The MICROVAP is generally easier to install because it runs on a standard laboratory gas supply. It operates at 20–30 psi (1.4–2 bar), compatible with most existing nitrogen generators and compressed gas systems, while the Reacti-Vap requires a much lower maximum inlet pressure of 2 psi, meaning many labs must add an external pressure regulator before connecting it to a standard line. Nitrogen consumption is roughly comparable between the two — 2–8 L/min for the MICROVAP versus 3–9 L/min for the Reacti-Vap — so gas usage itself is rarely the deciding factor.

Which System Reaches Higher Temperatures?

The Reacti-Vap reaches higher temperatures, with a published operating range extending to 200°C compared with the MICROVAP's 130°C ceiling. That extra range benefits labs running high-boiling solvents or specialized derivatization protocols that call for elevated heat. The Reacti-Vap also supports optional stirring through its Reacti-Therm pairing, which can improve evaporation uniformity for viscous samples, while the MICROVAP relies on its heat block and gas flow alone.

Is Either System Safe for Corrosive or Explosive Solvents?

Both systems are rated safe for corrosive solvents when equipped with PTFE-coated components, including strong acids; Thermo Fisher specifically offers PTFE-coated, blunt-ended 19-gauge stainless steel needles for the Reacti-Vap to reduce corrosion and cross-contamination. For explosive solvents, the MICROVAP is specifically documented as compatible when operated per manufacturer guidance, while equivalent explosive-solvent compatibility is not explicitly specified in the Reacti-Vap's published documentation. Labs working with volatile or potentially explosive solvents should confirm compatibility directly against each manufacturer's current safety documentation before purchasing.

Which Nitrogen Evaporator Should You Choose?

If your lab needs…	Choose
Cost-effective routine solvent evaporation	MICROVAP
Standard nitrogen supply compatibility	MICROVAP
Longer warranty coverage	MICROVAP
Evaporation temperatures up to 200°C	Reacti-Vap
Optional stirring during evaporation	Reacti-Vap
Maximum sample capacity (27 ports)	Reacti-Vap

Frequently Asked Questions

Is the Organomation MICROVAP a direct alternative to the Thermo Scientific Reacti-Vap?
Yes. Both instruments perform simultaneous nitrogen blowdown evaporation for sample concentration ahead of GC, LC, or GC/MS analysis, and both support EPA 8000-series sample-prep methods such as 8081, 8082, and 8270, but the MICROVAP costs roughly half to a third as much and requires a standard gas supply.

Can the MICROVAP replace a Reacti-Vap in an EPA method workflow?
In most routine EPA method workflows involving common solvents like methanol, acetonitrile, or hexane, yes — the MICROVAP's 130°C ceiling covers the vast majority of standard sample-prep protocols that rely on nitrogen blowdown concentration. Labs running methods that specifically require temperatures above 130°C or built-in stirring should verify their method's requirements against the Reacti-Vap's extended 200°C range first.

Why is the Reacti-Vap more expensive than the MICROVAP?
The Reacti-Vap's higher price, generally $4,000–$7,000 versus the MICROVAP's $1,000–$3,000, reflects its higher maximum temperature, larger port configurations, and optional stirring capability.

Do both evaporators work with corrosive solvents like strong acids?
Yes. Both the MICROVAP and the Reacti-Vap offer PTFE-coated components designed for strong-acid compatibility.

Which evaporator has a longer warranty?
The MICROVAP includes a two-year warranty, compared with the Reacti-Vap's standard 90-day warranty.

Bottom Line

Both the Organomation MICROVAP and the Thermo Scientific Reacti-Vap use proven nitrogen blowdown technology and remain trusted choices for sample prep across environmental, pharmaceutical, and forensic testing labs following EPA methods. For most routine analytical workflows, the MICROVAP delivers comparable evaporation performance, broader gas-supply compatibility, and a substantially longer warranty at a fraction of the price. Labs with specialized needs — very high-temperature protocols, integrated stirring, or maximum batch sizes — may find the added cost of the Reacti-Vap justified. Match the instrument to your actual solvent chemistry, throughput, and existing gas infrastructure before deciding.
